= MULTI COMBAT HELMET =
The Helmet is a modular tactical protective helmet, providing an overall protection to the head, face, jaw, ears, carotid artery, and neck.
Each module of helmet is detachable and can be quickly connected and disconnected to the helmet body.
«Main Features«
- 360°dynamic full protection -
- Modular design -
- Compatible with different tactical operations and so to deal with complex scenarios -
- High level protection -
- Convert the form into different modular parts which are detachable to the core of helmet -
- Quick installation/uninstallation -
«Specification«

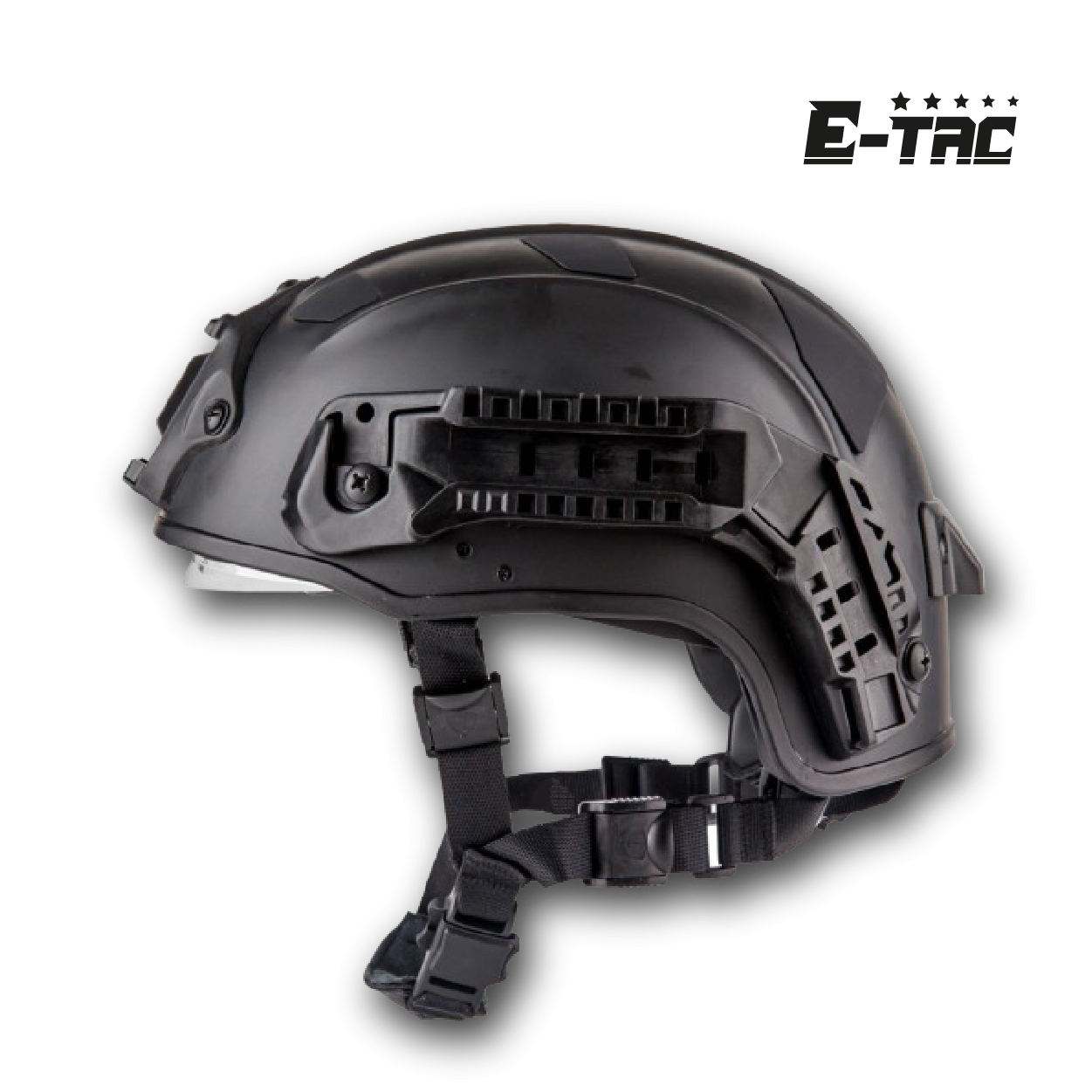

a. Helmet Main Body
Material:
Outer shell: Polyamide (PA) Fiber (Thickness: 4.5mm ( /-5%))
Inner layer: Polypropylene (PP) Foam
Suspension: Thermoplastic polyurethane (TRU) Foam Velvet
Picatinny rail: Polyamide (PA) Fiber
Magnetic buckle: Polyamide (PA) Neodymium magnet
Protection area:
Half head
Weight:
890g ( /-5%)(including inner visor)
Protection standard:
Comply with GA294-2012 Police Riot Helmet standard requirement

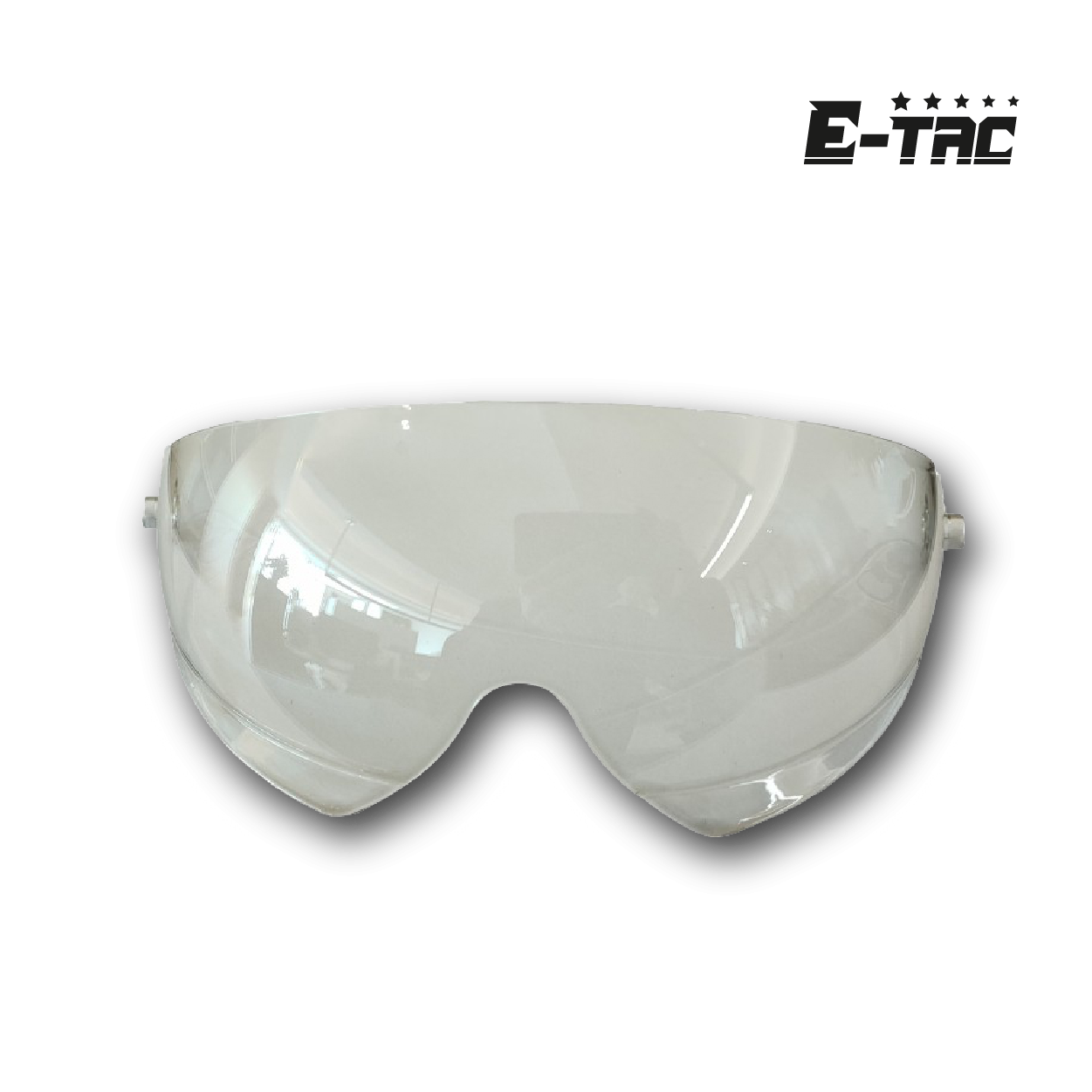

b. Inner Visor
Material:
953a High Viscosity Anti-UV Polycarbonate
Thickness:
1.8mm ( /-5%)
Protection Area:
16,230mm²
Weight:
42 g ( /-5%)
Light Transmittance:
88%
Gradient Gray Time:
12s
Gray to Transparent Time:
180s
Visible light transmittance:
≥88%
Anti-UV:
Gradient Gray (Discoloration transparent 35~88%)
Internal anti-fog:
Duration >30s
External anti-scratch:
Abrasion resistance index 6-7H
Anti-collision:
Withstand 4.9J kinetic energy impact
Anti-shotgun:
Withstand impact of 1g lead bullet at a speed of 190m/s

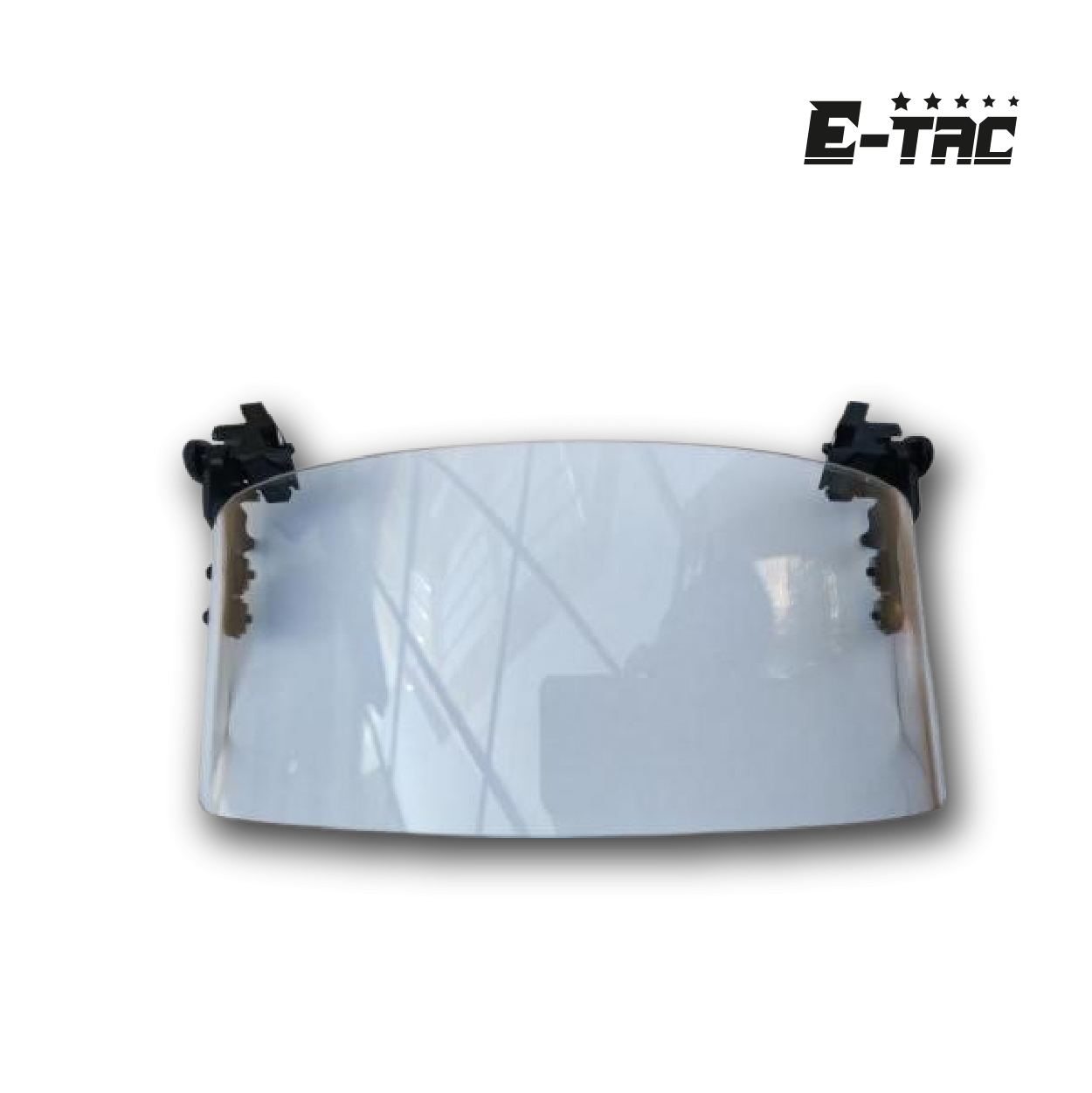

c. Face Shield
(Anti-fog, anti-impact, anti-scattershot)
Material:
Bayer 6557 Polycarbonate (PC)
Thickness:
3mm ( /-5%)
Weight:
262g ( /-5%)
Protection area:
37mm²
Visible light transmittance:
≥90%
Internal anti-fog:
Duration > 30s
External anti-scratch:
Abrasion resistance index 6-7H
Protective standard:
comply with GA294-2012 Police Riot Helmet standard requirement

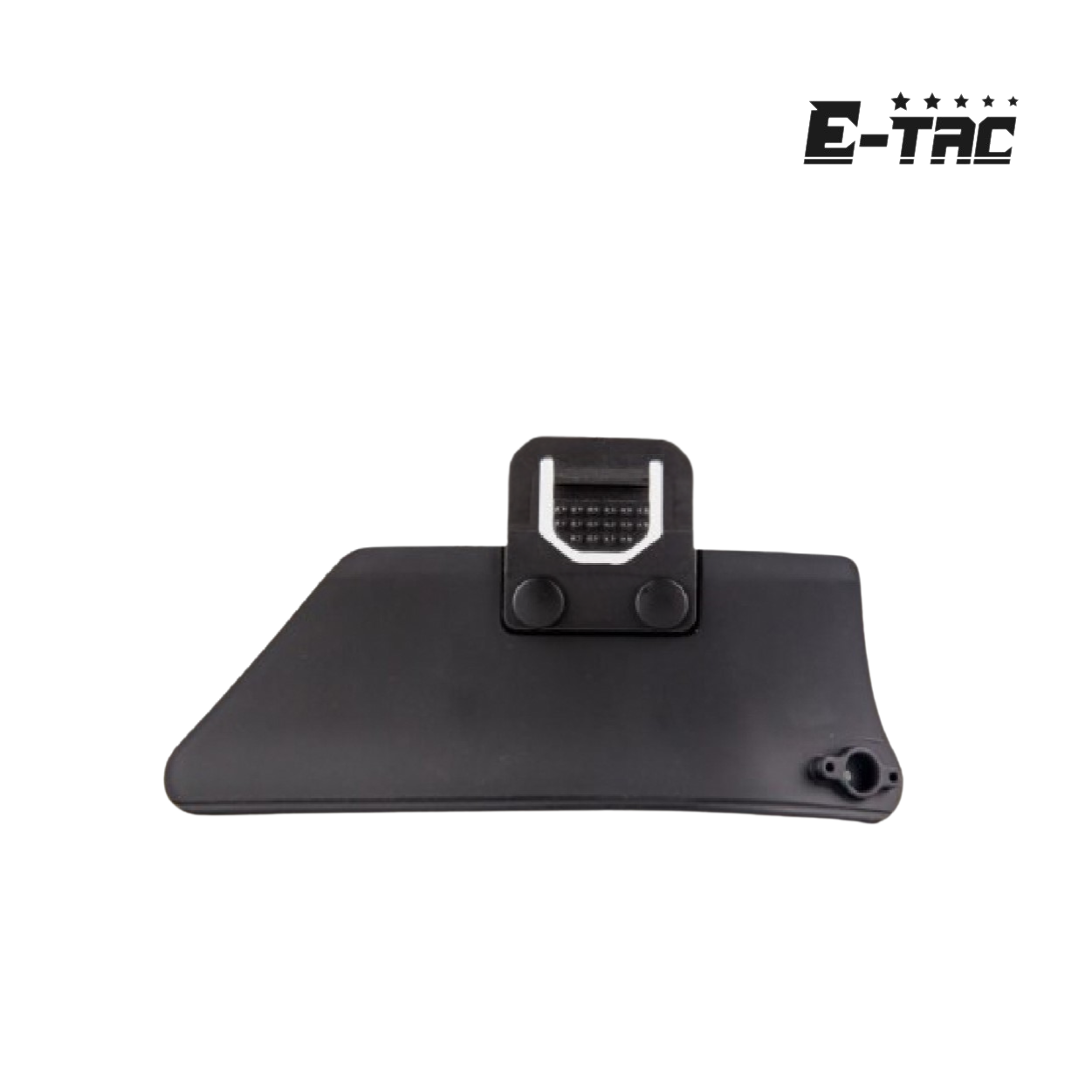

d. Jaw / Ear / Side Neck / Rear Neck Protector

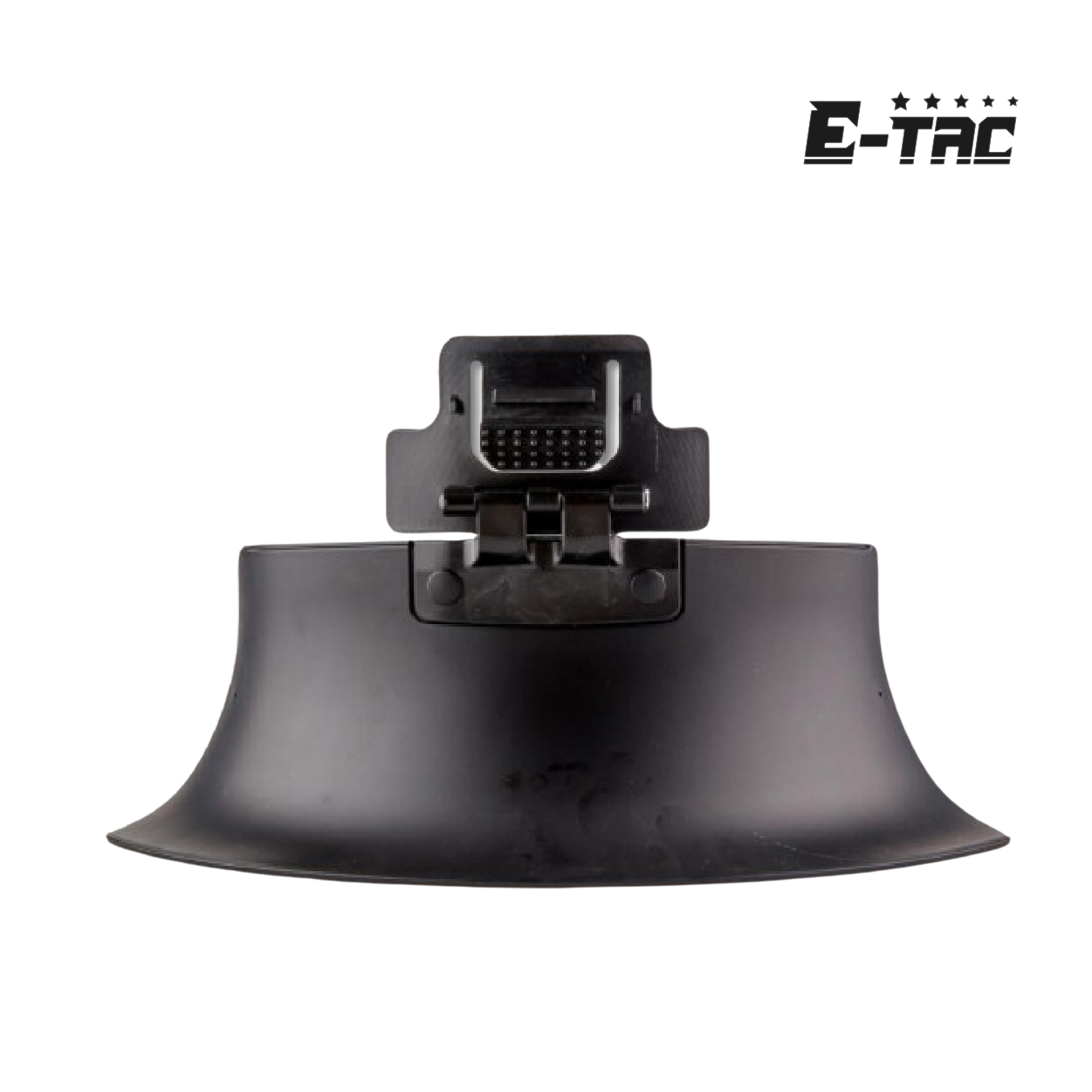

i. Jaw protector
ii. Rear neck protector
iii. Side neck protector

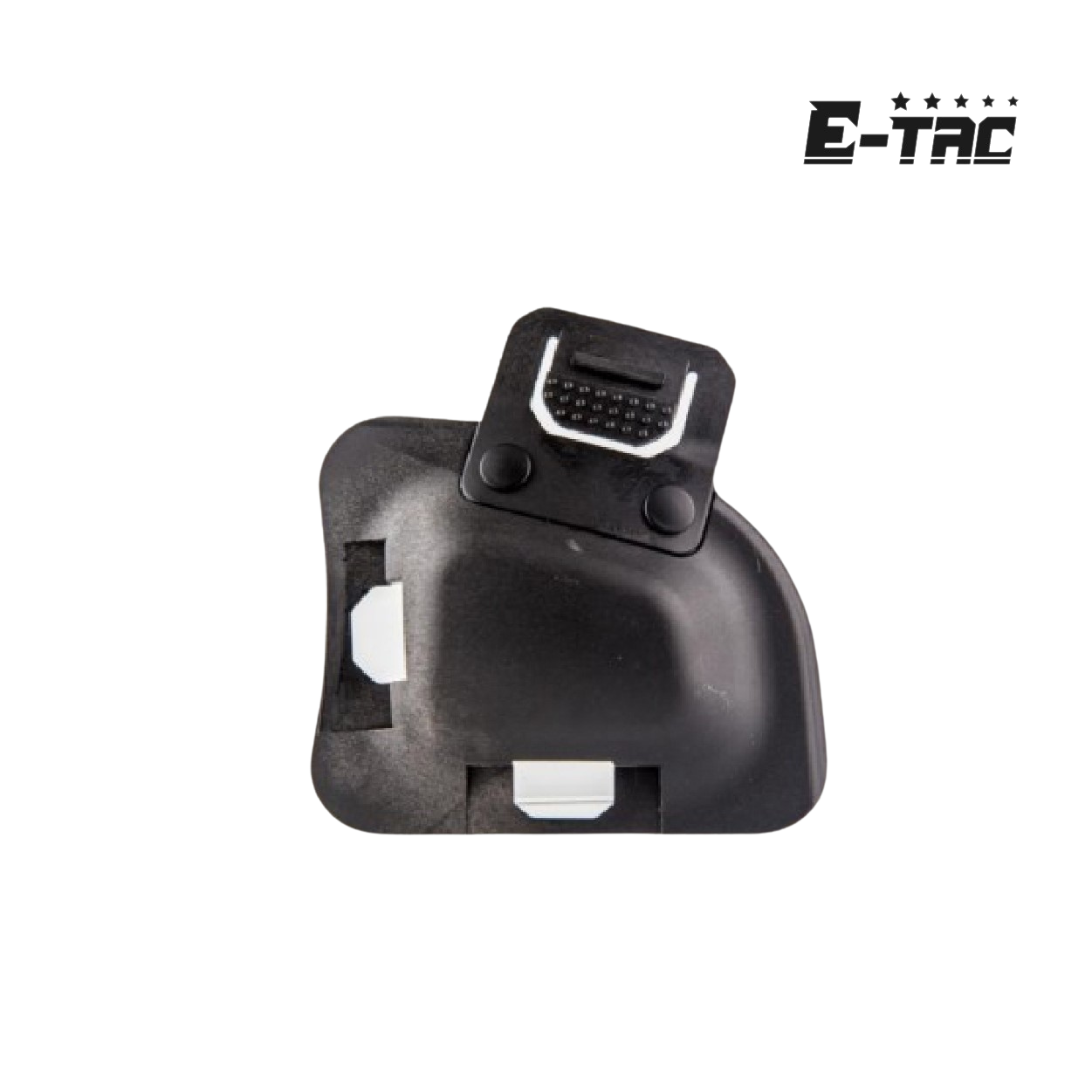

iv. Ear protector
Material:
Buckle: Polyoxymethylene (POM)
Frame: Polyamide (PA) Fiber
Metallic: 304 Stainless Steel Mesh
Link Rivet: 304 Stainless Steel Mesh
Thickness:
5.2mm ( /-5%)
Weight:
200g ( /-5%)
The inner and outer metal mesh are integrally formed, durable, impact-resistant, resistant to sticks, stones, breathable, and does not affect breathing.
